# Real-World Network Setups that Hackers Love
## Introduction: The Breach Nobody Notices
When I first dove deep into pentesting. I expected the hardest part would be finding the needle-in-a-kaystack zero-day. But you know what shocked me? Most real-world networks are already half-breached, all thanks to plain, boring misconfiguration.
This post isn’t a high-level rundown — it’s a battle diary. These are the misconfigurations I’ve seen again and again while testing real infrastructure. Some made me chuckle. Some made me shake my head. All of them made exploitation a walk in the park.
Let me walk you through these landmines from my perspective — as someone who’s had the keys handed over without even having to ask.
> A misconfigured switch is worth ore to a hacker than a thousand lines of code.
## 1. No VLAN Segmentation: The Day I Got the Whole Network from One Printer.
I once popped into a network during a lab simulation that mimicked a hospital setup through, of all things, a misconfigured network printer. It had default creds (`admin:admin` ), and the minute I authenticated, it was like opening a floodgate. There were no VLANs. No semgenetation. The dev environment, HR systems, IoT, and medical devices all shared the same broadcast domain.
**What I Saw:**
* ARP spoofing using Bettercap revealed device traffic instantly.
* Responder tricked machines into handing over credentials.
* Lateral movement via PSExec without triggering any alert.
**How I’d fix it if it were my network:**
* Carve VLANs by device roles — IoT here, users there, servers way over there.
* ACLs that act like bouncers: no ID, no traffic.
* Alert on internal traffic spikes.

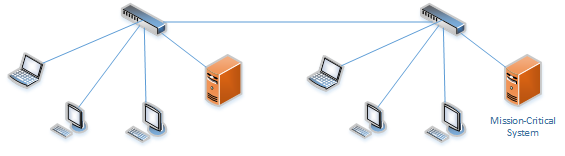

Flat Network Architecture

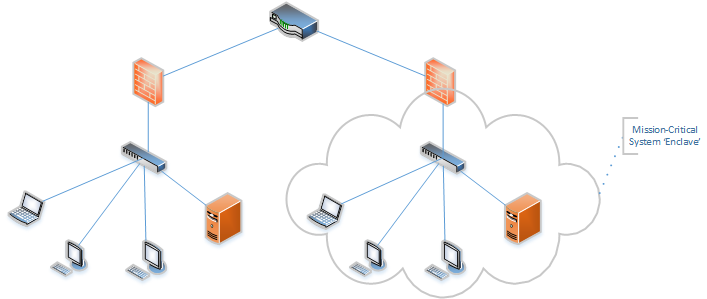

Segmented Network Architecture
## 2. SNMP Default String: The Time I Got the Blueprint for Free
In a red team lab on Hack The Box (HTB), I encountered a router running SNMP with the community string set to `public` . It was as if the network administrator taped all the blueprints to the wall and left the door open. A single `snmpwalk` later, I had the routing tables, interface configurations, and even system usernames.
**Tools I Used:**
* `onesixtyone`for brute-forcing strings.
* `snmpwalk` to read sensitive data from routers.
**Mitigation Steps in the Real World:**
* If you’re not using SNMP, disable it.
* Otherwise, enforce SNMPv3 — authenticated and encrypted.
* Periodic scanning to detect accidental exposures.
## 3. SMB Shares: The Goldmine You Forgot About
During a TryHackMe challenge called “Internal”, I came across an SMB share titled `Backup` . No credentials needed. I found SQL dumps, internal documentation, and a shocking file named `creds.txt` containing plaintext domain passwords.
**What Worked:**
* enum4linux, smbclient, and a dose of curiosity.
* Grepping through .config, .env, and .bak files for passwords.
**The Safe Move:**
* Eliinate “Everyone” and “Guest” access.
* Audit all shares like you would a GitHub repo — public until proven otherwise.
* Educate staff to treat shares like sensitive drop zones.
## 4. Telnet & FTP: Still Alive (Unfortunately)
In a real client engagement simulating an old banking environment, I stumbled onto a network device with Telnet open. Out of curiosity, I connected and was shocked when it didn’t ask for creds. Default creds (`admin:1234`) worked.
**My Toolkit:**
* Wireshark captured raw login details.
* Used credentials to pivot into internal applications.
**Don’t be that admin:**
* Use SSH and SFTP instead, no excuses.
* Completely disable Telnet and FTP at the firewall.
* Run periodic NAMP scans to ensure legacy ports stay closed.
## 5. LLMNR, NetBIOS-NS, and WPAD: The Eternal Flame
In my Active Directory lab setup (mimicking the CRT exam scenarios), these legacy protocols gave me instant NTLMv2 hashes with zero effort. A rogue Responder instance on the subnet did all the work.
**How I abused it:**
* Responder + NTLMRelayX combo led to domain-level access.
* Used hashes to pass-the-hash on WinRM sessions.
**Put These to Rest:**
* Use Group Policy to disable LLMNR and NetBIOS.
* Block WPAD auto-discovery.
* Enforce SMB signing and restrict NTLM authentication.
## 6. Overly Permissive Firewalls: Everything was open
One HTB Pro Lab (“RastaLabs”) handed me a network with open WinRM, RDP, MySQL, and even MSSQL on public interfaces. It was like walking into a candy shop with one cashier.
**What Happened:**
* Exfiltrated data over DNS with `iodine`.
* Set up a reverse shell via HTTPS using `nishang`.
* Lateral movement from dev to prod using shared service accounts.
**The Hardened Way:**
* Default deny, explicit allow.
* Monitor outbound connections using a proxy and deep packet inspection.
* Keep ports invisible unless they’re meant to be public.
## Conclusion: From One Misconfig to Full Compromise
Every one of these instances started the same way with a misconfiguration that someone thought didn’t matter. But to a red teamer or malicious actor, it’s an open door.
The best networks I’ve seen weren’t perfect. They just didn’t make it easy, and that’s what I hope this guide helps you do: close the obvious doors, tighten what’s loose, and start thinking like an attacker.
#### For practicing these attacks:
* Set up your own AD or HTB-style labs with these vulns and try exploiting them.
* Document your process; it helps you remember and builds your portfolio.
* Never assume defaults are safe. Test everything.
---
